IBM Power Server OP Panel (Operater Panel) Display Imformation
IBM Power Server 의 OP Panel 에 대해 알려 드리겠습니다.
OP Pabel 이란?
✅ System Hard ware 상태 를 알려주는 창 이다.
시스템 전면부에 위치하고 있으며, 모델별로 버튼 및 포트는 상이함

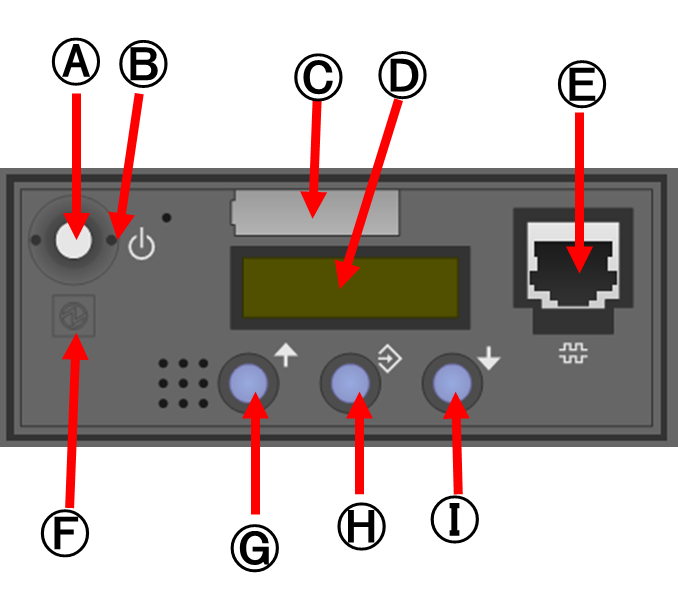

👉 OP Pabel 명칭
Ⓐ. Power-onbutton
Ⓑ. On/offpowersymbol
Ⓒ. Serialnumberlabel
Ⓓ. Function/Datadisplay
Ⓔ. Systemport(S1)
Ⓕ. PowerLED
- A blinking light indicates standby power to the unit.
- A constant light indicates full system power to the
unit.
Note: There is approximately a 30-second transition
period from the time the power-on button is
pressed to when the power LED goes from
blinking to solid
During the transition period, you might observe
the blinking intervals speed up
Ⓖ. Decrementbutton
Ⓗ. Enterbutton
Ⓘ. Incrementbutton
✅ OP Pabel Display 상태

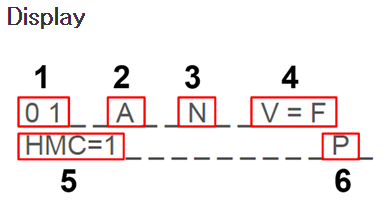

👉 Display Information
1. Function Code (OP Panel의 기능을 선택하는 곳)
2. Valid OS IPL types (OS IPL Type 선택)
3. Valid system operating modes (시스템 동작 모드 선택)
4. Valid IPL speed displays (IPL 속도 선택)
5. HMC indicator (HMC manage 여부 확인)
6. Valid firmware IPL mode (Firmware IPL 유형 선택)
👉1. Function Code
| Control Panel Function Code | Operating Mode | Notes | |
| Function 01 | 선택된IPL Type, System Operating Mode 및 IPL Speed 표시 | Normal 또는 Manual | |
| Function 02 | IPL Type, IPL Speed Override, System Operating Mode, 및 Firmware Mode선택 및 변경 | Normal 또는 Manual 및 Power Off | For IPL Speed Override, The System must be Powered-off |
| Function 03 | Start IPL (시스템 Booting) | Manual 및 Power On | Do Not Perform a System Shutdown Before the IPL |
| Function 04 | Lamp Test (LED 테스트) | Normal 또는 Manual | 4분 지속 |
| Function 05 | Reserved | ||
| Function 06 | Reserved | ||
| Function 07 | SPCN Functions (시스템 전원 컨트롤 네트워크, System Power Control Network) |
Manual | A1 : Broadcasts a Power-on Command A6 : Displays Frame Address on All Towers A8 : Displays the SPCN Configuration ID Number for a Selected Frame A9 : Sets the SPCN Configuration for a Selected Frame |
| Function 08 | Fast Power Off (시스템 강제 종료. No Dump) | Manual 및 Power On | First Time : SRC A1xx 8008 Second Time : Power Off Confirmation |
| Function 09 | Reserved | ||
| Function 10 | Reserved | ||
| Function 11~19 | System Reference Code (SRC) | Normal 또는 Manual | SRC Code Displayed Record for Problem Analysis |
| Function 20 | System Type, Model, Feature Code, 및IPL Type |
Normal 또는Manual | |
| Function 21 | Service Tool Initiation. | Displayed on the Console with O/S running. Use Dedicated Service Tool(DST) | |
| Function 22 | Partition Dump | Manual | With O/S running. 2 Consecutive Function Operations are Required |
| Function 23~24 | Reserved | ||
| Function 25~26 | Service Switchs 1 및 2 | Function 25 and Function 26 in Order makes Function 50~99 Available | |
| Function 27~29 | Reserved | ||
| Function 30 | CEC FSP IP Address 및 Location | Manual | CEC FSP의 ip 주소를 표시 00 = SP A: ETH0 01 = SP A: ETH1 02 = SP B: ETH0 03 = SP B: ETH1 |
| Function 31~33 | Reserved | ||
| Function 34 | Retry Partition Dump (파티션 덤프 재시도) |
Manual | To Retry the Partition IPL without Losing Original Dump Information. Activated by the O/S. |
| Function 35~41 | Reserved | ||
| Function 42 | Platform Dump (플랫폼 덤프) | Manual | Activated by O/S or FSP. To Dump IBM POWER Hypervisor Main Storage and Hardware Data. 2 Consecutive Function 42 Selections are Required for Operation. |
| Function 43 | Service Processor Dump | Manual | Activated by FSP. To Dump Service Process or Data. Sub-Function : 00=Master 01=Slave 02=FSP A 03=FSP B 2 Consecutive Function 43 Selections are Required for Operation. |
| Function 50~54 | Reserved CE Functions | ||
| Function 55 | Platform Dump Override. (Dump Policy 및 Override Variables보기 및 변경) |
Manual | Activated by FSP and When CE Functions Have Been Enabled. 00 View policy override settings 01 Policy: As Needed 02 Policy: Never 03 Policy: Always 04 Content Override - Maximum 05 Content Override - As Required 06 Content Override - Minimum 07 Content Override - Optimum |
| Function 56~62 | Reserved | ||
| Function 63~99 | Low-Level Debug(LLD) Functions | Manual | |
| Function 63 - System Status SRC Trace |
To View a Copy of the First Word of the Last 25 System Status SRCs. | ||
| Function 64 - Diagnostic Status SRC Trace |
To View a Copy of the First Word of the Last 25 Diagnostic Status SRCs | ||
| Function 65 - Deactivate Remote Service |
To Deactivate a Remote Service Session | ||
| Function 66 - Activate Remote Service |
To Activate a Remote Service Session. | ||
| Function 67 - Disk Unit IOP Reset/Reload |
To Initiate an I/O Processor Dump and a Disk Unit I/O Reset/Reload. This Function is Enabled only When the I/O Processor of a Displayed SRC Supports a Reset/Reload Function | ||
| Function 68 - Concurrent Maintenance - Power Off |
To Power Off Power Domains to Affect Concurrent Replacement of IOPs and IOAs | ||
| Function 69 - Concurrent Maintenance - Power On |
To Power On Power Domains to Affect Concurrent Replacement of IOPs and IOAs | ||
| Function 70 - IOP Dump |
To Initiate IOP Dumps. Available in Manual Operating Mode When Activated by the OS | ||
👉 Valid OS IPL types
| Initial program load (IPL) type | Action or description |
| A | 시스템 LIC의 Copy A에 있는 IPL 사용 |
| B | 시스템 LIC의 Copy B에 있는 IPL 사용 |
| C | 하드웨어 서비스용 주의 : 이 기능을 잘못 사용하면 심각한 데이터 손실 발생 가능 |
| D | load-source disk가 아닌 설치를 위한 대체 IPL 사용 |
👉 Valid system operating modes
| System operating mode | Action or description |
| Manual (M) | 매뉴얼 모드. IPL 기능을 실행하며, 제한된 Function을 사용 가능 |
| Normal (N) | 노말 모드. 설정되어 있는 IPL 기능 실행 |
👉 Valid IPL speed displays
| IPL speed | Action or description | Details |
| F | Fast override for one IPL | Fast IPL 실행 일부 하드웨어 진단 |
| S | Slow override for one IPL | Fast IPL 실행 전체 하드웨어 진단 - Main storage 테스트 - Service processor inter-chip 간의 인터페이스 테스트 - Extended logical built-in self 테스트 |
| V=F | Use system-defined speed | 시스템 값에 의한 Fast IPL |
| V=S | Use system-defined speed | 시스템 값에 의한 Slow IPL |
| V | Fast IPL or slow IPL set by the system value | Function 02에서 선택하거나 각 IPL의 시스템 default 값 적용 |
| H | Hyperboot override for one IPL | Hyperboot IPL 실행 |
| V=H | Use system-defined speed. | 시스템 값에 의한 Hyperboot IPL 실행 |
👉 HMC indicator
| Action or description | |
| None | HMC에 의해 관리되지 않는 시스템 |
| HMC=0 | HMC에 의해 관리되는 시스템, HMC와 연결이 되어 있지 않은 상태 |
| HMC=1 | HMC에 의해 관리되는 시스템, HMC와 연결이 되어 있는 상태 |
👉 Valid firmware IPL mode
| IPL mode | Action or description |
| P | 시스템 Firmware Permanent 사용 |
| T | 시스템 Firmware Permanent 사용 |
